Building an Oven

During the summer of 2012, we constructed a wood-fired clay oven in our backyard.  What follows is a pictorial record of the construction process.  Most of the material for the foundation (3.5' deep) and the thermal mass of the dome and the cob facade came from materials that were procured onsite.  And yes, the insulation under the hearth does consist of about fifty wine bottles.

We have since discontinued baking in this outdoor oven due to town zoning restrictions.  All of our breads and other baked goods are now baked in an indoor kitchen convection oven.  However, stay tuned as plans are in the works to build an indoor masonry oven with a larger baking capacity.


Sifting clay using a soil screen
More sifting...
Digging the foundation footings
More digging...

More digging...
Tamping down the bottom of the hole
more tamping...
Beginning to fill in the foundation with rock
Adding gravel and coarse sand
tamping down the gravel, nearing ground level
Almost finished footing...
Laying first course of 200+ patio bricks, dry stacked to form foundation
Keeping everything as level as possible
My 1 year old son Volker is the foreman
Adding more bricks to the foundation

Additional courses...
Nearly there...
Top of foundation takes shape
Adding gravel that the hearth slap will rest on
Tamping it down
More tamping...
Course of bricks that will contain hearth slab and sub-floor insulation
Detail of cob mixture (clay/straw) that will adhere the bricks to the foundation
Fifty wine bottles will provide sub-floor insulation

That's a lot of bottles...

Admiring our handiwork
Inspecting...
Mixing bark mulch clay slip that will provide additional insulation between the wine bottles

Adding bark mulch
Filling...
Detail of bark mulch clay slip
Mixing clay/sand building material for oven dome
Clay hearth slab upon which hearth fire bricks will rest
Detail of finished hearth slab
Arial view
Hearth slab is done!
Laying fire bricks for hearth in the dark by lantern light
The beer bottles helped us keep things level
Finished hearth bricks that will serve as the baking area of the oven
The next day, we began by setting the arch bricks around a wood form
Finalizing the arch bricks and readying the chimney

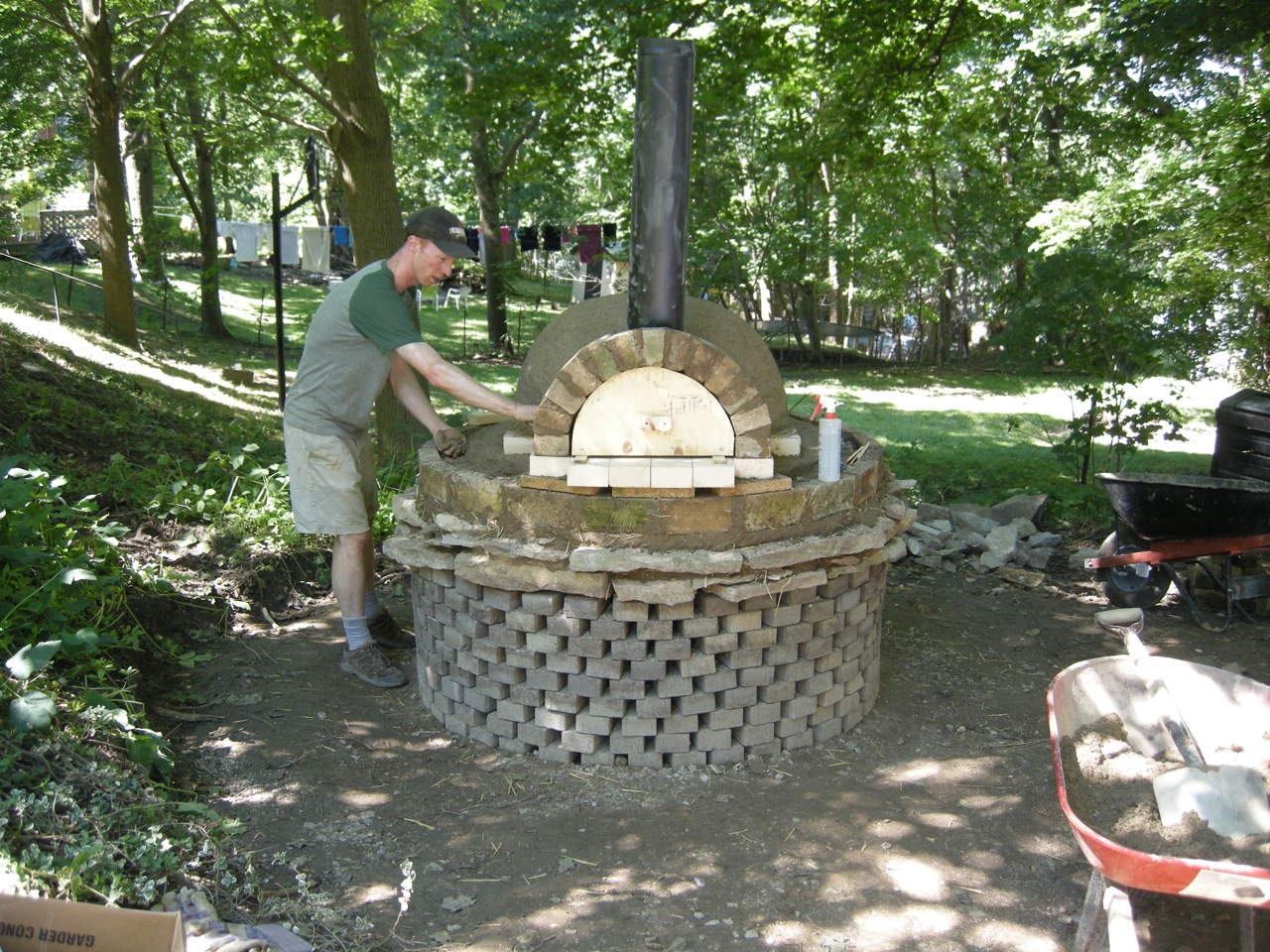

Building the sand form which the dome will be built around

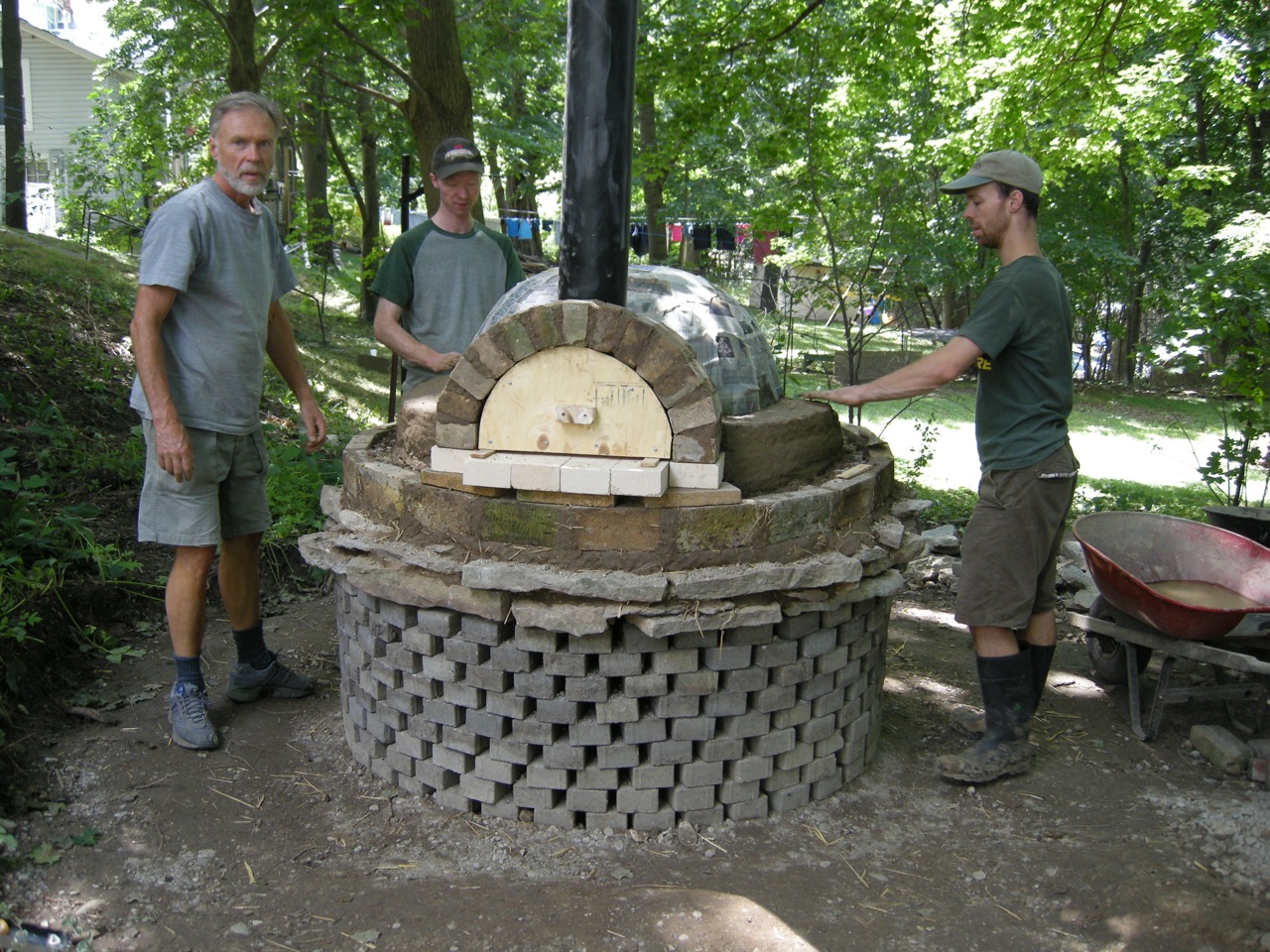

Sand form complete

Wet newspaper is a barrier between sand form and dome

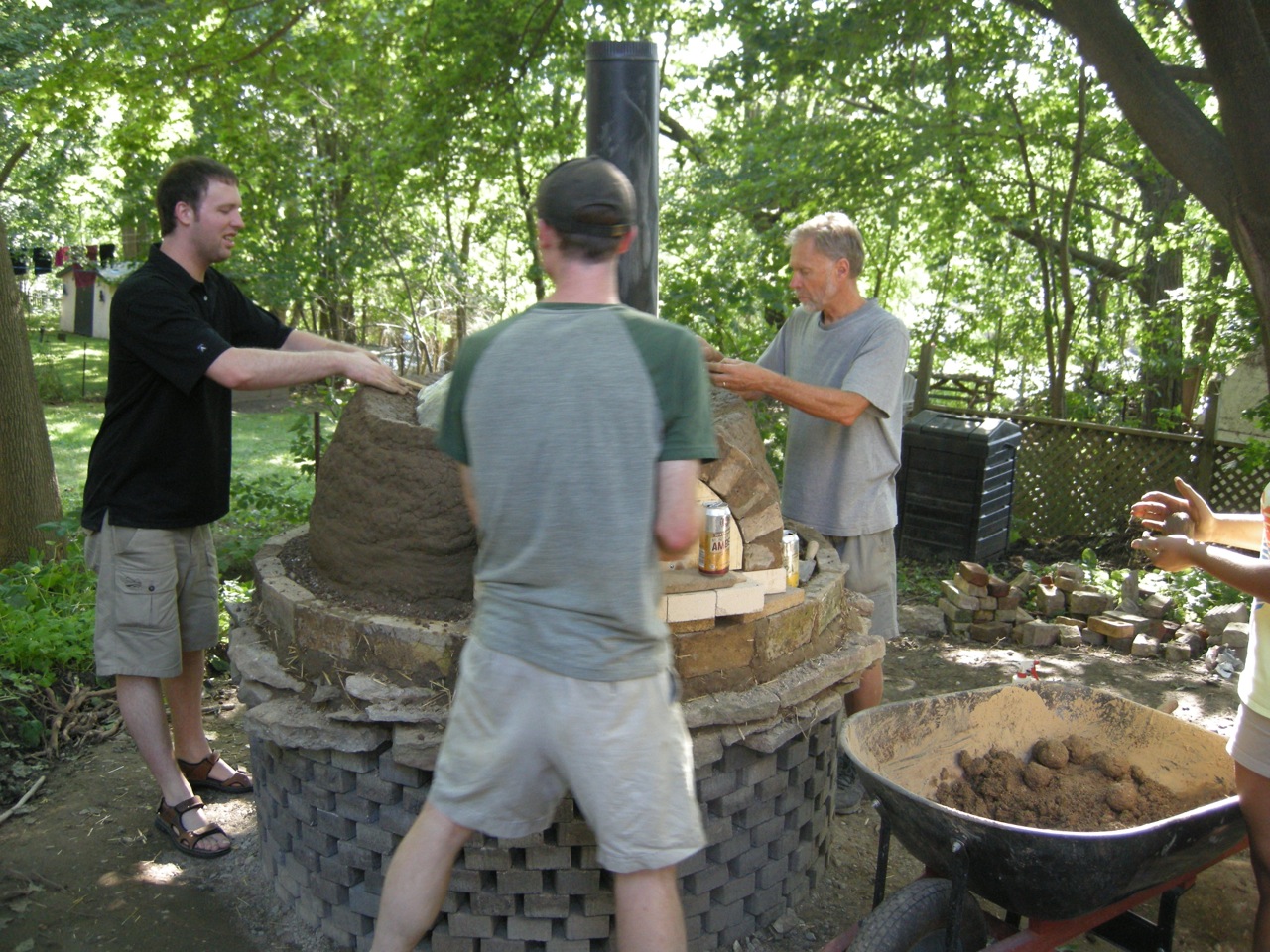

Beginning to build the dome




















Somebody went and drank all the beer
Making progress!



A ladder was needed to finish the top of the dome
Steady as she goes...
We ran out of building material and had to mix more!


It's starting to get dark!
Oh so close to finishing the dome!


Done!
Admiring our work the next morning, waiting for the dome to dry before removing the sand form
